Prestart Alarm Controller

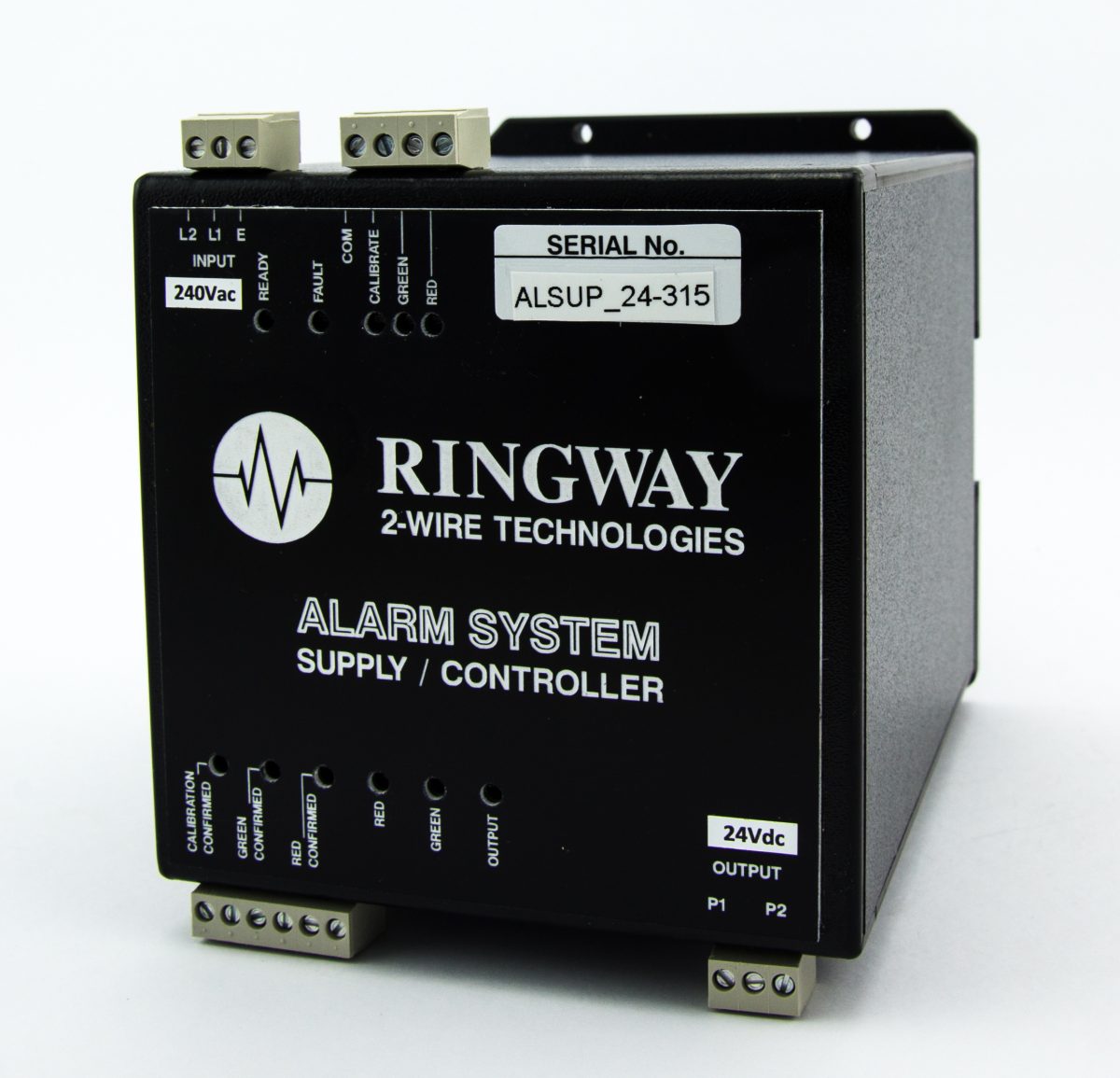

The heart of this alarm system is the power supply / controller (ALSUP_24/48). The controller is DIN-rail or foot mounted in a control cabinet and powers alarm enunciators via a two-wire supply bus. The system is totally down-line powered with no batteries or repeaters. There are several enunciator types, depending on the application and price poin...

Features

Simple, robust and functional.
Lost cost alternative.
No hazardous field voltages
Long distances achievable – fully down line powered.
Ideal for overland conveyors – 48V version supports more alarms – greater distance
Alarm output duration = zero to indefinite.
Self calibrating operation confirmation at source or remotely.
Dual state output allows alarm / warning as well as healthy / safe to be broadcast.
Two tone piezo alarm with (AL24X3O) or without (AL24X2O) LED light indication
Green state can be used for remote isolation confirmation

Applications

1 Conveyor / Machine Prestart Warning

When used in conjunction with AL24X2O / AL24X3O alarm units, a two tone audible alarm is sounded at each alarm site, while ever the controller ‘red’ input is energized. With the 24V output model, up to 55 units can be connected at 100m intervals on 5mm2 cable to provide ‘overlapping’ performance (as required by AS/NZS 4024) over the entire length of a 5.5km conveyor. Greater distances and more alarms can be covered with the 48V version.

Specification

Power Supply

110V or 240VAC

Alarm Output

22VDC @ 300mA

Digital Inputs (24VDC)

1= Calibrate; 2= Green 3= Red

Digital Outputs (voltage free contacts)

1= Calibrate Confirm; 2= Green Confirm; 3= Red Confirm

Dimensions

Base = 125 (w) x 145 (h) Depth = 175mm

Ordering Information

Select product(s) for project list, then add to list.

Product name	Product number
Prestart Alarm Controller 24V	ALSUP_24
Prestart Alarm Controller 48V	ALSUP_48

Add to Project List

Resources and Downloads

Brochure

Download
