Light Activated Switch

Light Activated Switch

Features

  • Simple, robust and functional.
  • High reliability - solid state indicators for long lamp life. Multiple parallel banks that still display should a LED fail.
  • Extra Low Voltage for Safe operation
  • Narrow Field of Vision - low levels of light if viewed from the side.
  • Long Distance Vision - easily seen at 200 meters in an underground mine.
  • Simple Control for Reliable Operation
  • Cross Arrow combination to assist those with red/green colour blindness
  • IP67 with Tough Polycarbonate Clear Lid
  • Mounting Brackets Available on Request
  • Sun Shades Available on Request

Applications

The light activated switch provides a useful alternative to the traditional chain switch in operating traffic lights underground. The light switch eliminates the need for human contact with the switch mechanism. With a light switch mounted at the entrance points of the roadway under control, operators can switch the traffic system using their cap lamp. The light switch is also viable in situations where a chain switch or limit switch are not easily mounted or accessed. Additionally, the light switch has found application in hazardous areas mounted in a flameproof enclosure enabling operators to activate a PLC input inside the flameproof enclosure via a cap-lamp or torch.

Specification

Power Supply
LIGHTSW – 20 to 27V dc @ 21mA + output current
LITESWWC – 20 to 30V dc @ 22mA + output current
LITESWFP / LITESWPBS – 20 to 30V dc @ 32mA + output current
Output Current
LIGHTSW – Standard current load to operate Ringway Traffic System (100mA)
LITESWWC / LITESWFP / LITESWPBS – Relay output can switch up to 2A inductive @ 24VDC
Body Dimensions
LIGHTSW / LITESWWC – 77 (l) x 77 (w) x 54mm (h) Box, 50 x 32mm Snout
LITESWFP – A.T. Flameproof Enclosure 351 Series with Window. H = 107mm, Dia = 136mm
LITESWPBS / LIGHTSWPBPBS – 235mm (l) x 130mm (w) x 100mm (h), 50 x 32mm Snout

Ordering Information

Select product(s) for project list, then add to list.

Product name Product number

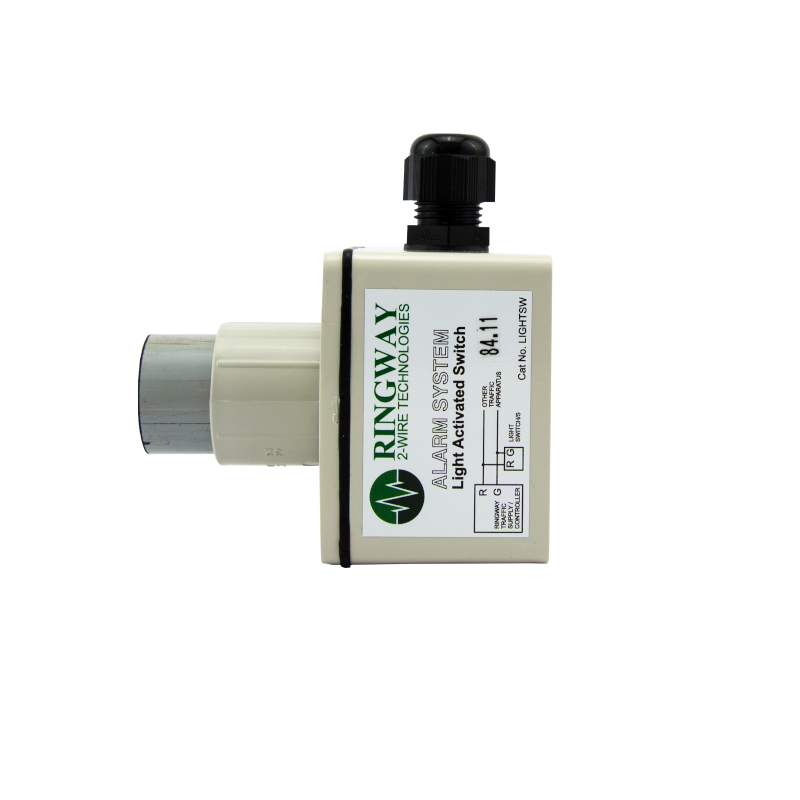

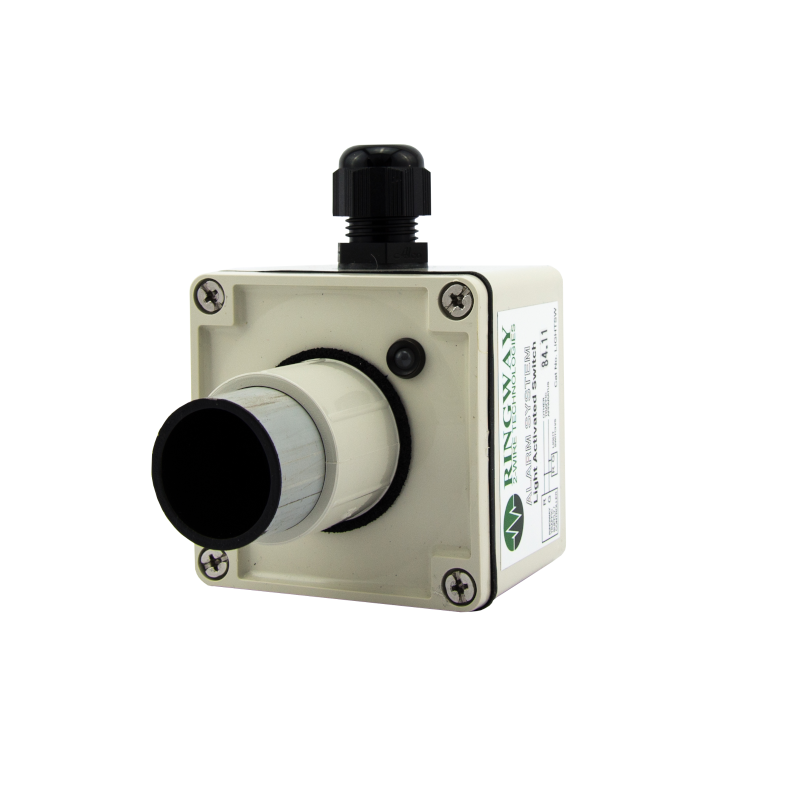

Light Switch LIGHTSW
Light Switch – General Purpose 24V LIGHTSWWC
Light Switch – General Purpose 24V in Flameproof Enclosure LITESWFP
Light Switch – General Purpose 24V in PBS Enclosure LITESWPBS

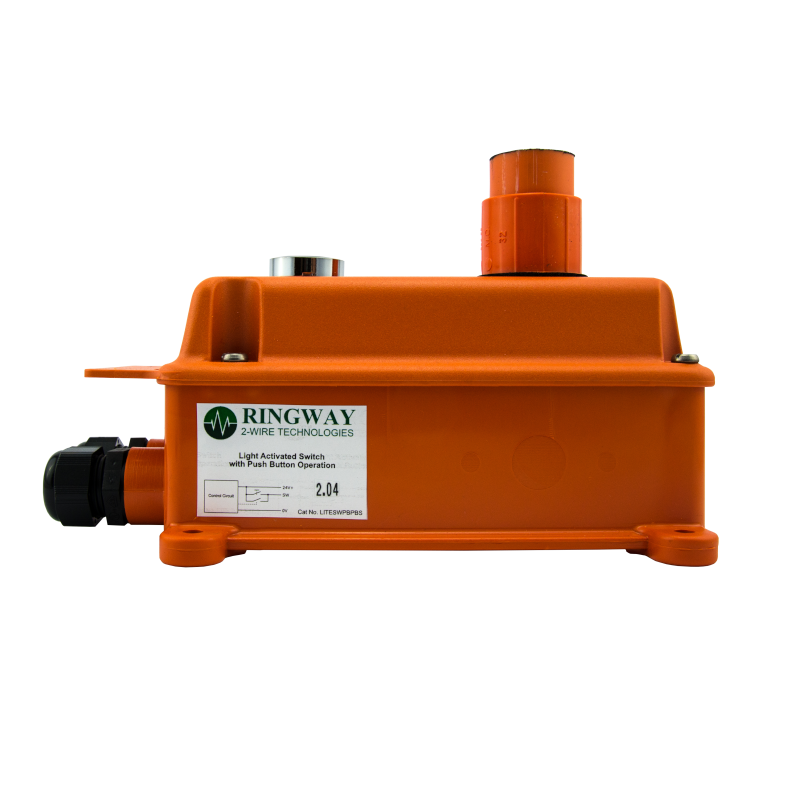

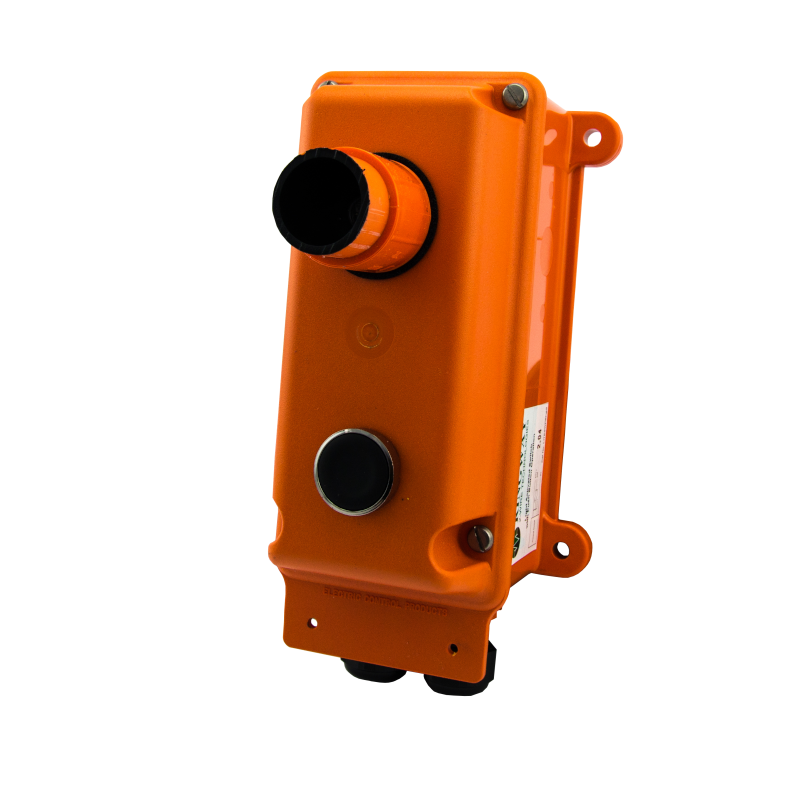

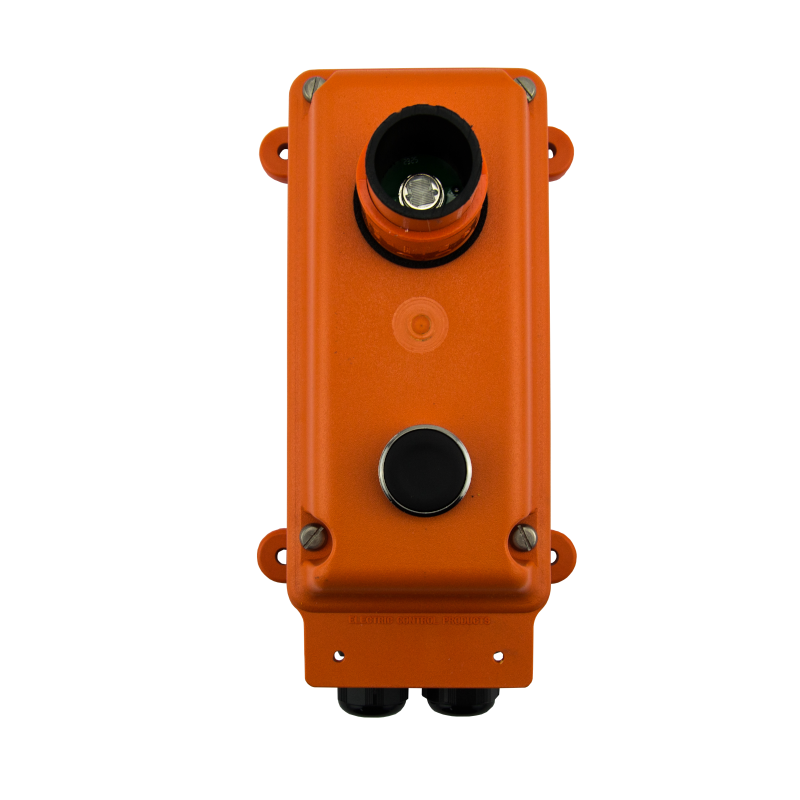

Light Switch – General Purpose 24V in PBS Enclosure with pushbutton LITESWPBPBS
Light Switch with pushbutton LIGHTSW_PB
