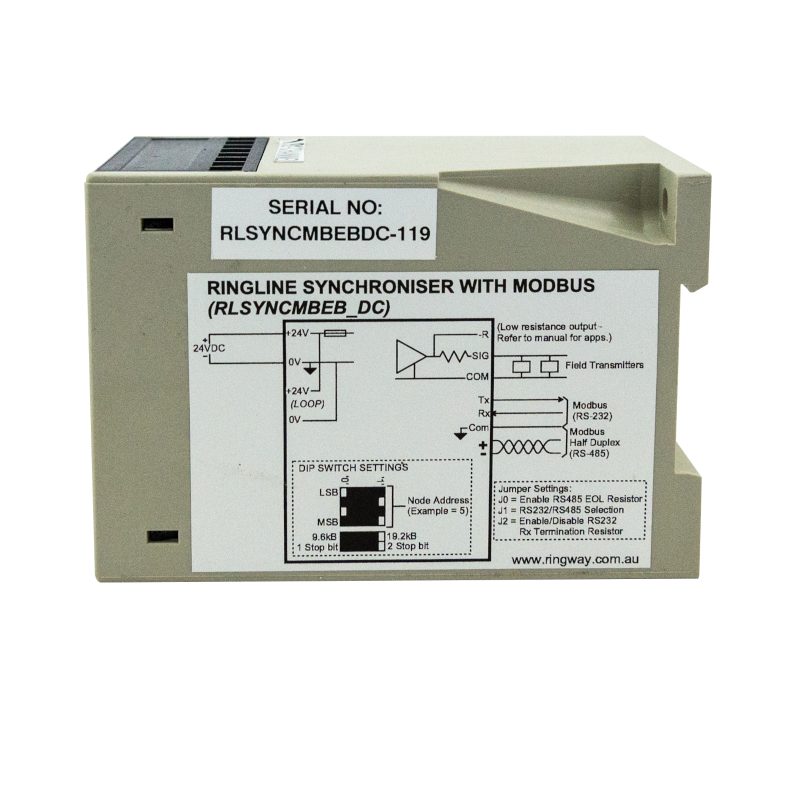

RLSYNCMBEB – Ringline Synchroniser

The RLSYNCMBEB is a high-capacity 192-channel Ringline field bus synchroniser and power supply, designed for wide-area signal acquisition and control over a simple two-wire backbone. It powers and decodes the full range of Ringline field transmitters—including analogue devices—and maps their status to Modbus registers for seamless integration with ...

Features

192 Ringline channels for digital and analog signal acquisition
Modbus RTU Slave communication via RS-232 or RS-485
Wide-area coverage: up to 7 km radius over two wires
Built-in diagnostics with LED indicators
Supports intrinsically safe applications with matched barrier
Selectable baud rates (9600 or 19.2 kB) and addressable via DIP switches
Power options: 110/240VAC or 24VDC (RLSYNCMBEB_DC variant)
Compact form factor: 75mm (H) × 55mm (W) × 110mm (D)

Applications

Ideal for distributed I/O, remote monitoring, and data acquisition in mining, water infrastructure, and industrial automation, the RLSYNCMBEB offers a cost-effective, robust solution for long-distance signal transfer with minimal infrastructure.

Specification

Input Power Supply

110V AC / 240V AC (24V DC = RLSYNCMBEB_DC)

Ringline Output

7.4V RMS DC @ 1kHz

Modbus

RTU Slave – Selectable Address – RS485 or RS232
9.6 or 19.2 kB with 1 or 2 Stop bits

Dimensions

75mm (H) 55mm (W) & 110mm (D)

Ordering Information

Select product(s) for project list, then add to list.

Product name	Product number
Ringline Synchroniser (24VDC)	RLSYNCMBEB_DC
Ringline Synchroniser (240/110VAC)	RLSYNCMBEB

Add to Project List

Resources and Downloads

Brochure

Download
