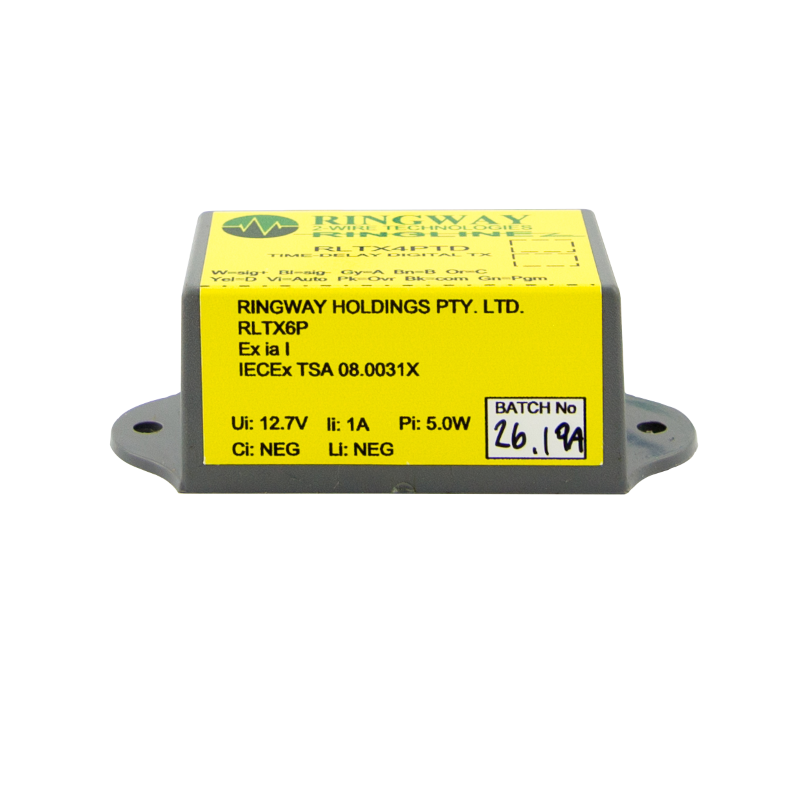

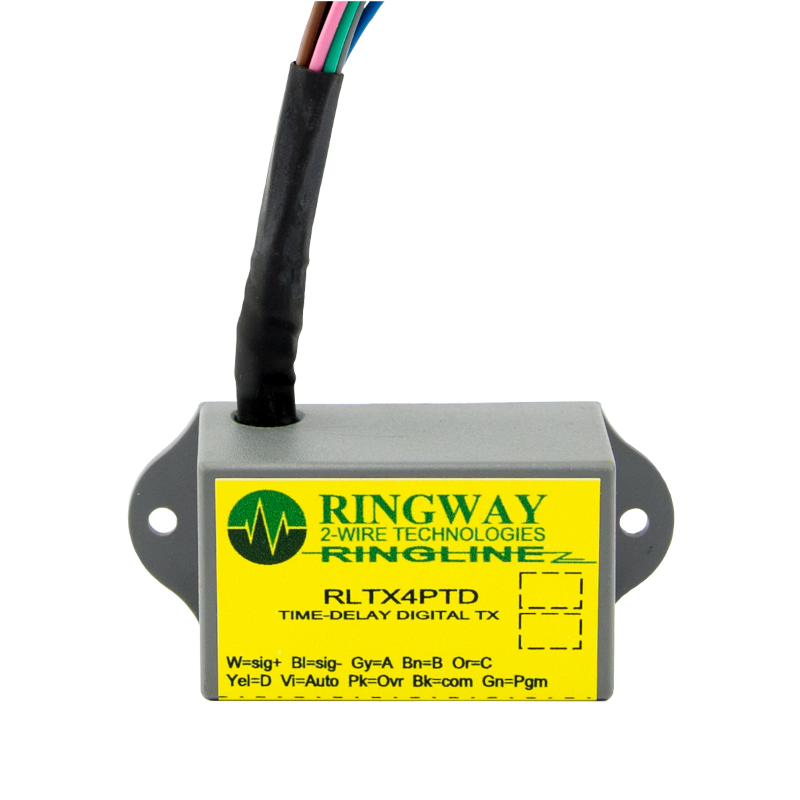

RLTXS2TD / RLTX4PTD – Ringline Time Delay Transmitter

The Ringline 2-channel Time-Delay Transmitter with diagnostics (RLTXS2TD) is designed to monitor limit switches or other safety devices in processes where a time delayed response to an input is desired. The transmitter output changes to the trip state only after a change-over (C/O) input switch has been operated continuously for the programmed ...

Features

Integrates time-delayed trips into the Ringline Safety function
Easy configuration (hard-wired) of auto/manual resetting
Push button ‘override’ function to facilitate re-alignment work or diagnostic operation (manual reset mode)
Built in surge / lightning protection
Single output mode minimises consumption of Ringline addresses
Diagnostics provides trip discrimination
Programmable address(es) and time-delay
Intrinsically Safe [Ex ia] I

Applications

The RLTXS2TD and RLTX4PTD are well suited for monitoring of tracking & dislodgment switches.

Integrated monitoring of dual tracking switches with integrated bypass / reset pushbutton reset. Allowing for failsafe monitoring of remote tracking switches with enhanced diagnostic information.

Specification

Power Supply

7.4V RMS from the Ringline field bus

Inputs

1 or 2 voltage-free C/O contacts

Output

Encoded onto the Ringline field bus

Addressing

Programmable with Ringline Programmer (RLPROG2)

Operating Temperature Range

-30 → +75 ºC

Dimensions

70 (w tabs) / 50 (w body) x 30(h) x 25(d) mm Ø3mm mounting holes – 60mm apart

Ordering Information

Select product(s) for project list, then add to list.

Product name	Product number
Ringline 2 Channel Time Delay Transmitter – Enhanced version allows for AS/NZS 4024.3611 compliance and touch monitoring	RLTXS2TD
Ringline 2 Channel Time Delay Transmitter – Monitors 2 inputs with time delay using 2 or 4 channels in the safety mask	RLTX4PTD

Add to Project List

Resources and Downloads

RLTXS2TD Brochure

Download

RLTX4PTD Brochure

Download
