Features

• Simple, robust and functional.
• Class II SELV safety isolating transformer provides full galvanic isolation from monitored lines.
• Indicates presence of supply voltage at 415V or 1100V PH-PH (see order options)

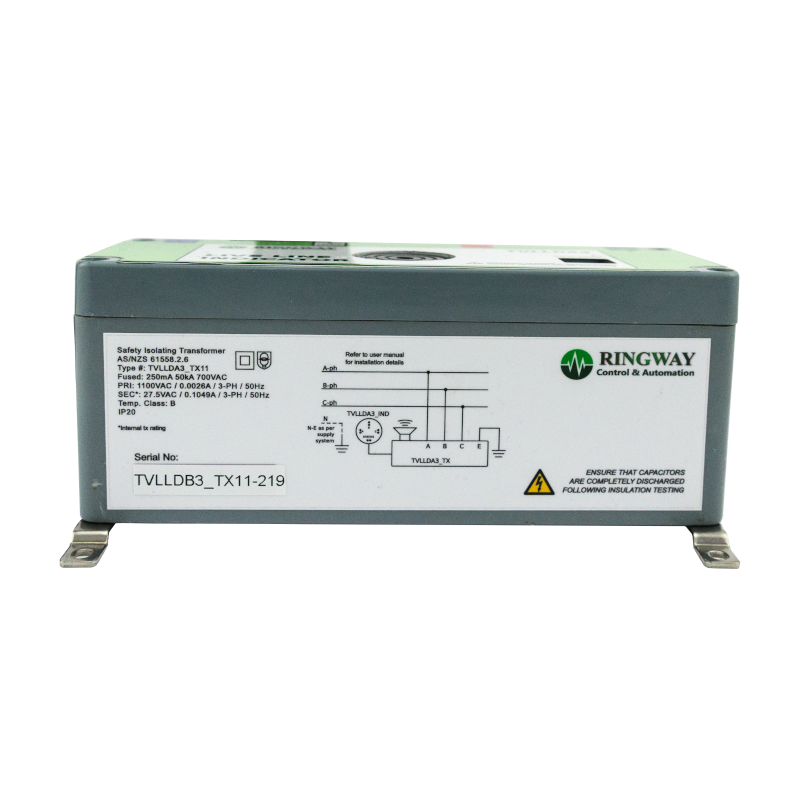

• Monitoring transformer with built-in power supply to power detector off any single phase
• Series DC blocking allows for insulation resistance testing to 1kV
• No bulky, expensive fusing required due to internal fusing and double insulated input design.

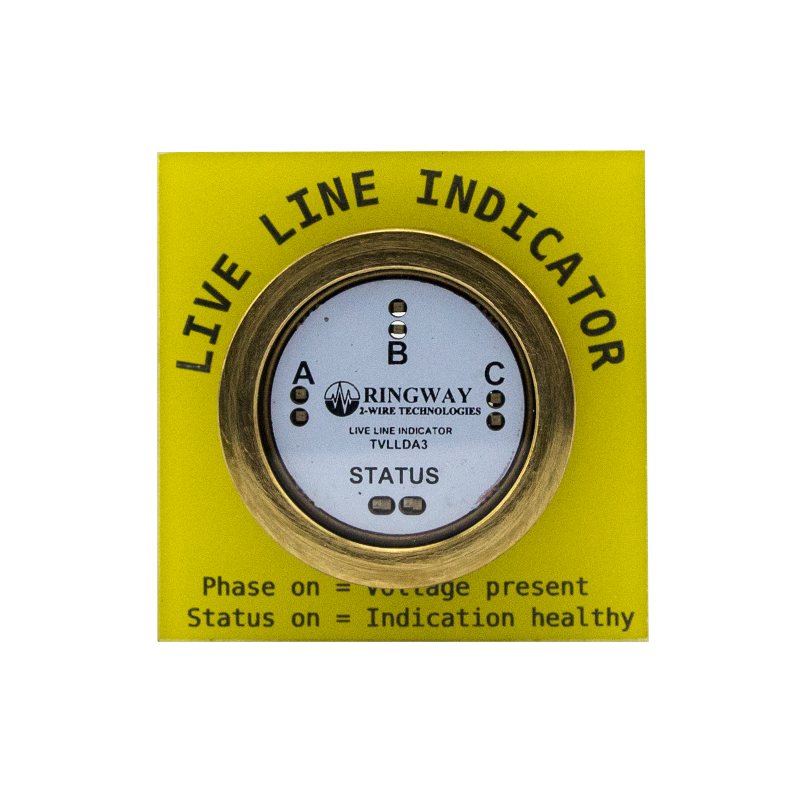

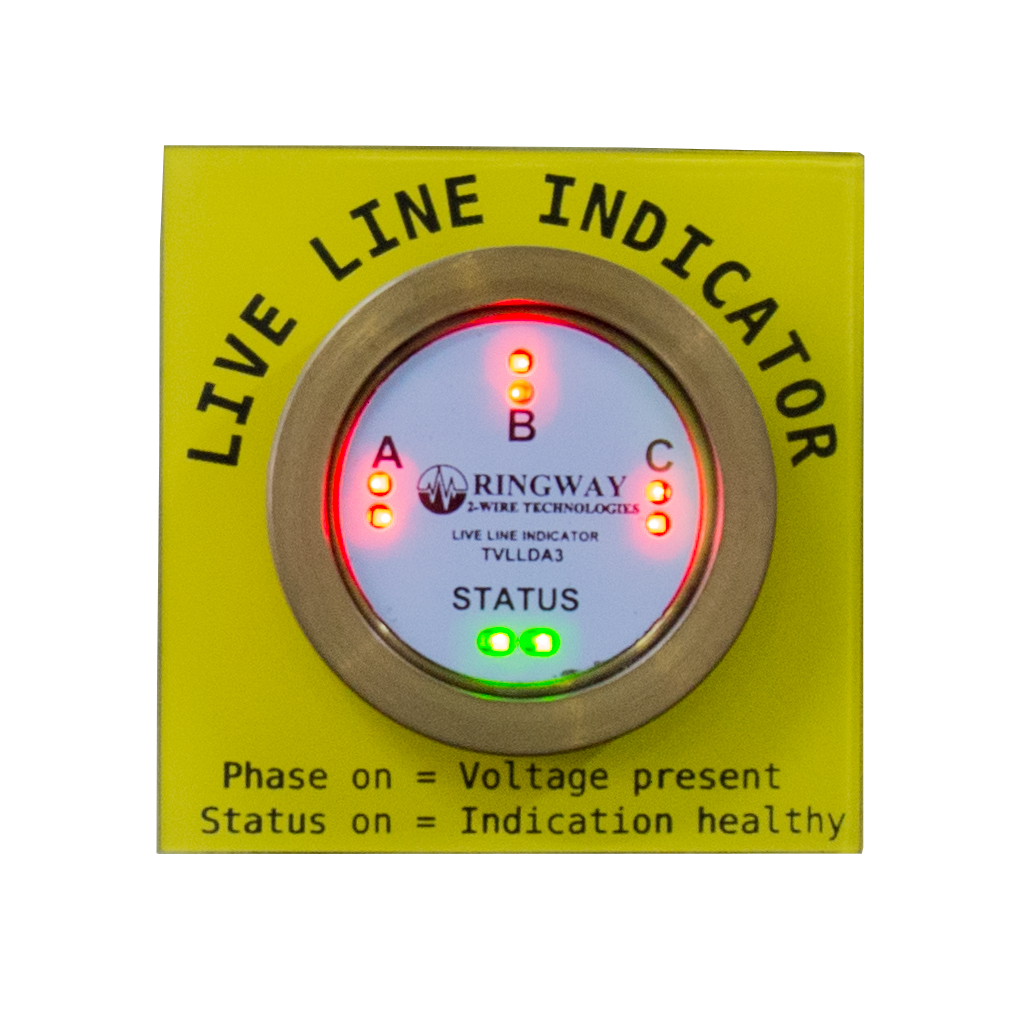

• Redundant LED indication for each phase (A,B,C) as well as indication health status (STATUS).
• Indicator designed to maintain at least IP55 on the enclosure it is installed.
