2-Wire Temperature Sensor

The TEMP2WIR is an analog, loop powered 4 to 20mA temperature transmitter suitable for monitoring oil temperatures in industrial environments. It’s range is 0 to 150 °C. Sensing electronics is fitted into a robust cast iron housing, with brass encasement of the sensing transducer for fast and accurate heat transfer.

Features

Simple, robust and functional.
IP65 rating.
Brass, stub nose sensor, eliminating risk of long probe breakages.

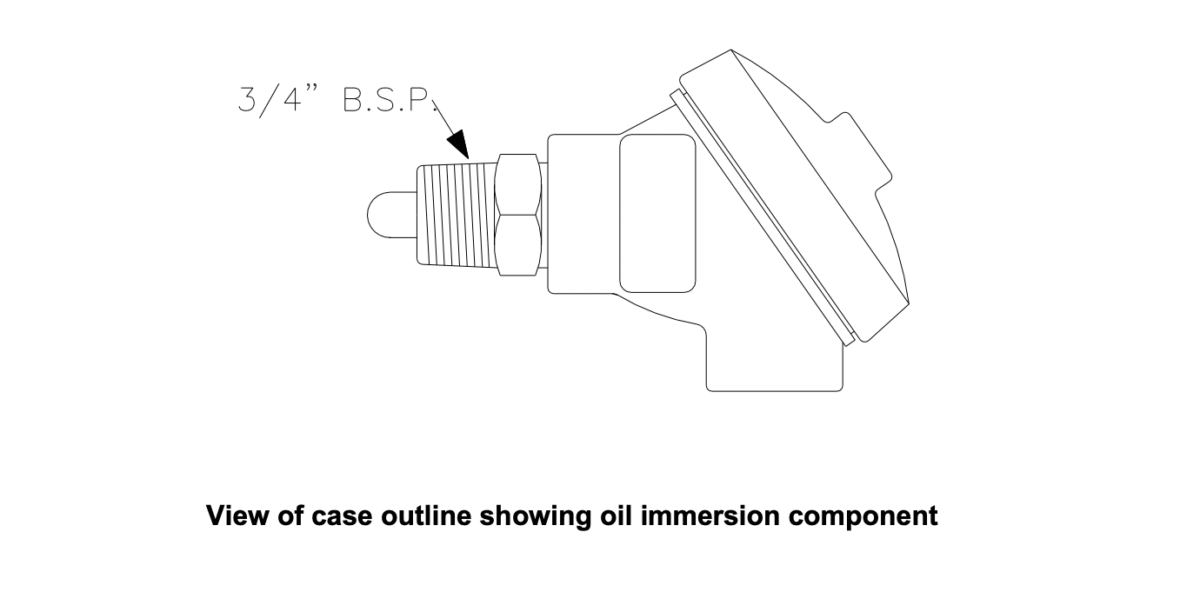

Standard ¾ in BSP mounting. (Other threads available on request)
Plug in - plug out electronics without losing oil.
Loop powered 4 - 20 mA output.
0 -150 °C range.
No calibration or adjustment required.
Conduit thread for enclosed wiring.

Applications

This unit was originally designed to monitor gear box oil temperatures in industrial environments. The brass and cast iron housing, make it suitable for use in coal mines and other harsh environments. It may be used to monitor any non-corrosive liquid, such as water, cooling oil or hydraulic oil.

Specification

Power Supply

16 to 24V DC

Input

AD590 laser trimmed, solid state, temperature transducer

Output

0 to 150°C = 4 to 20mA

Ordering Information

Select product(s) for project list, then add to list.

Product name	Product number
2 Wire Temperature Sensor	TEMP2WIR

Add to Project List

Resources and Downloads

Brochure

Download
