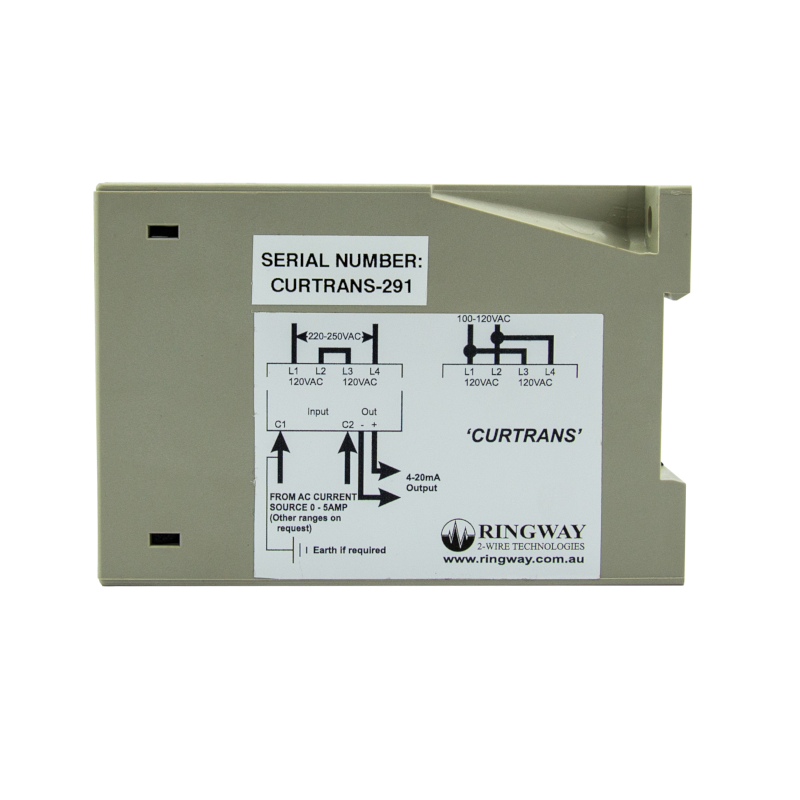

Current Transducer

Current Transducer

Features

  • Simple, robust and functional.
  • AC 110/240V and DC 24V supply options
  • Maximum output signal clamped to 20mA
  • Easy retro-fit to existing circuitry

Applications

Ringway has used Curtrans units to provide motor current feedback signals into a controlling PLC in a wide range of installations since 1993. Applications include the measurement of applied torque during conveyor starting and providing feedback for the sharing of load between multiple drive motors. The transducer is simple to use and reliable.

Specification

Power Supply
110V / 240VAC or 24VDC
Input
0 – 5 Amps
Output
4 – 20mA
Maximum Outpt Load
450 ohms
Dimensions
55mm (W), 75mm (H), 110mm (D)

Ordering Information

Select product(s) for project list, then add to list.

Product name Product number
Current Transducer (110V / 240VAC) CURTRANS
Current Transducer 24VDC CURTRANS_DC

Resources and Downloads

Brochure
Download
