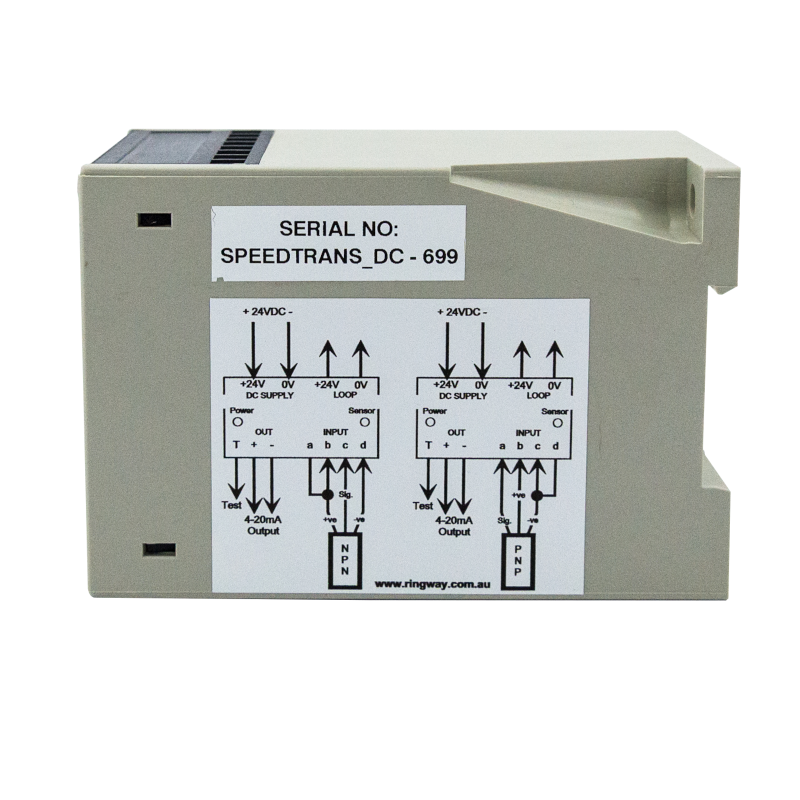

Speed Transducer

The Ringway Speedtrans converts either an NPN or PNP proximity switch input signal to a 4-20mA DC output signal. Speedtrans units may be calibrated to give a 4-20mA for a range of frequency inputs from 0 – 10Hz to 0 – 1000Hz. If pre-calibrated the calibration setting is recorded on the ‘Tested’ sticker attached to the base. If site calibration is r...

Features

Simple, robust and functional.
110/240VAC and 24VDC options available
Caters for NPN or PNP inputs
Easy span function – fixed zero setting
On board test point terminals to measure output
LED indication of sensor signal

Applications

Ringway has used Speedtrans units to provide accurate speed feedback signals into a controlling PLC in a wide range of installations since 1993. Applications include the accurate measurement of conveyor speed for acceleration control and slip detection and general motion monitoring.

Specification

Power Supply

110V / 240VAC or 24VDC

Input

NPN or PNP proximity switch or signal

Input Range

0 – 10Hz minimum or 0 – 1000Hz maximum

Output

4-20mA

Maximum Output Load

350 ohms

Dimensions

55mm (W), 75mm (H), 110mm (D)

Ordering Information

Select product(s) for project list, then add to list.

Product name	Product number
Speed Transducer 110V or 240VAC	SPEEDTRANS
Speed Transducer 24VDC	SPEEDTRANS_DC

Add to Project List

Resources and Downloads

Brochure

Download
